SL822P-V2 | Fast ethernet unmanaged 8port poe switch 2 gigabit uplink 2 sfp

The SL822P-V2 8 Port PoE Switch provides 8 Fast Ethernet PoE ports, 2 Gigabit Ethernet ports, and 2 SFP slots. With IEEE802.3af/at/bt support, it’s ideal for powering IP cameras, wireless access points, and VoIP phones.

Email:

Sample order

Product Overview

The SL822P-V2 8 Port PoE Switch is a powerful and versatile networking solution perfectly suited for businesses needing both robust power delivery and high-speed data transfer. This 8 port PoE switch features 8 10/100Base-TX Ethernet ports2 10/100/1000Base-T Ethernet ports, and 2 1000Base-X SFP slots for flexible fiber optic connectivity. Designed with comprehensive PoE capabilities, ports 2-8 support IEEE 802.3af/at, delivering up to 25.4W per port, while port 1 supports IEEE 802.3BT (PoE++), providing up to 60W. Thanks to its intelligent PoE detection, the SL822P-V2 ensures power is only supplied to compatible PoE devices, safeguarding non-PoE equipment from potential damage.

Key Features

  • 8 10/100Base-TX PoE ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP uplink slots for diverse connectivity.
  • 7 RJ45 ports support IEEE802.3 af/at Ethernet power supply standards with a maximum output of 25.4W per port.
  • 1 RJ45 port supports IEEE802.3 af/at/poe++/bt Ethernet power supply standards with a maximum output of 60W per port.
  • Supports one-key switching to VLAN mode and 250m long-distance transmission mode for extended network reach.
  • Supports digital tube to dynamically display PoE online utilization rate.
  • All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All Ethernet ports support line-speed forwarding for optimal performance.
  • Supports desktop and wall-mounted installation.
  • Plug and play for easy setup, no configuration required.
  • Durable metal shell and built-in power supply for excellent heat dissipation and long-term stability.
  • Optional: 6KV common mode/4KV differential mode surge protection.
  • Optional: AI network self-healing (watchdog) function.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at/bt Power Over Ethernet
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Interface informationSingle-mode SFP: 2 1000Base-X SFP optical ports (uplink port)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
Downstream ethernet port: 8 10/100/1000M Base-T ports (supports POE, POE+, POE++)
Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports)
10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height):203×140×44mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
P.W.: 0.7KG; G.W:0.9KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:9.6Gbps
Packet forwarding rate (whole machine) : 7.14Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 9k
Power supplyInput voltage: AC100~240V,50Hz
Power consumption: < 5W, full load: ≤96W
PoE pin802.3AF/AT/BT(1/2+,3/6-)
IndicatorEthernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)Vlan offVlan on
Fiber port: Green(Port 11-12)
PWR: Green
Warranty3 year

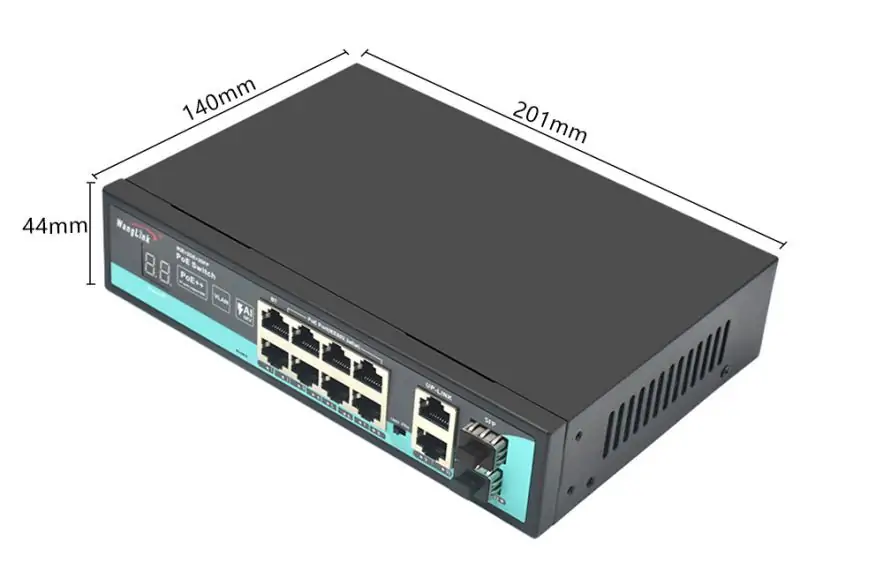

Product size

Product size: SL822P-V2 | Fast-ethernet-unmanaged 8port poe Schalter 2 gigabit uplink 2 sfp

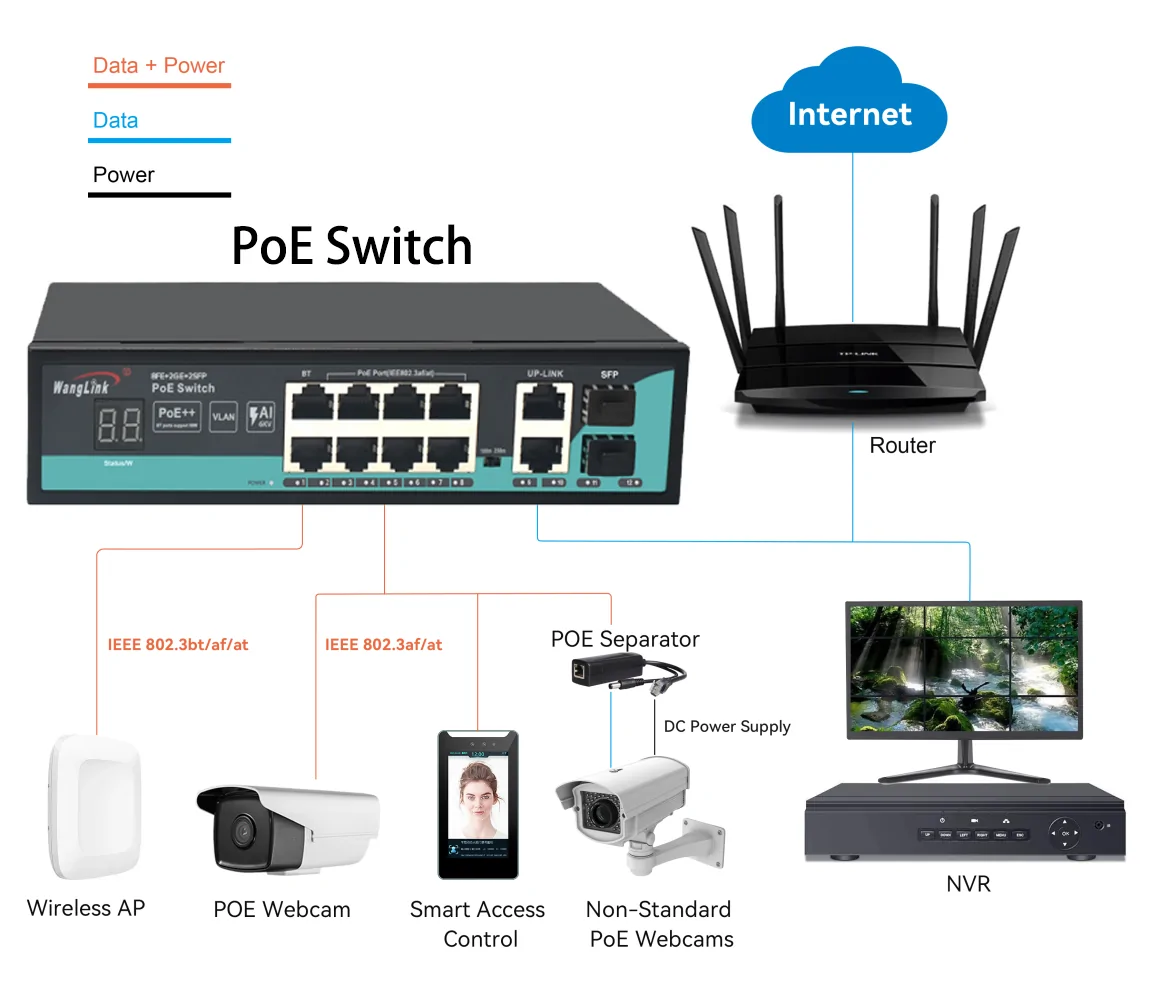

Application

Application: SL822P-V2 | Fast-ethernet-unmanaged 8port poe Schalter 2 gigabit uplink 2 sfp
Product size: SL822P-V2 | Fast-ethernet-unmanaged 8port poe Schalter 2 gigabit uplink 2 sfp
Application: SL822P-V2 | Fast-ethernet-unmanaged 8port poe Schalter 2 gigabit uplink 2 sfp
