SF62NP | Unmanaged Non-standard protocol poe switch 8port 6 poe 2 uplink

Discover the SF62NP poe switch 8port for efficient power and data delivery. With 6 PoE ports and easy installation, it’s perfect for reliable networking solutions.

Email:

Sample order

Product Overview

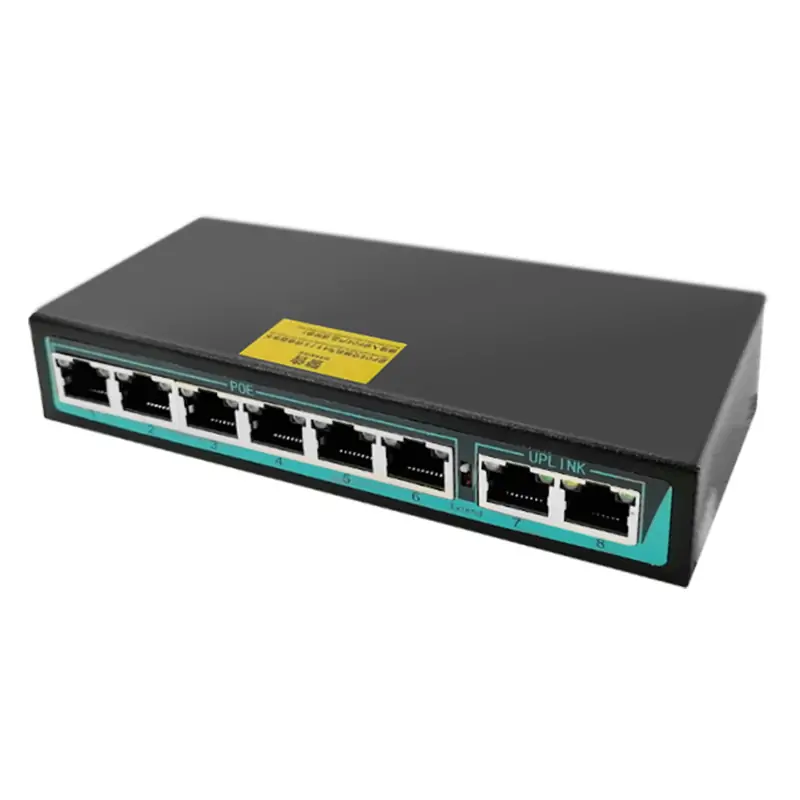

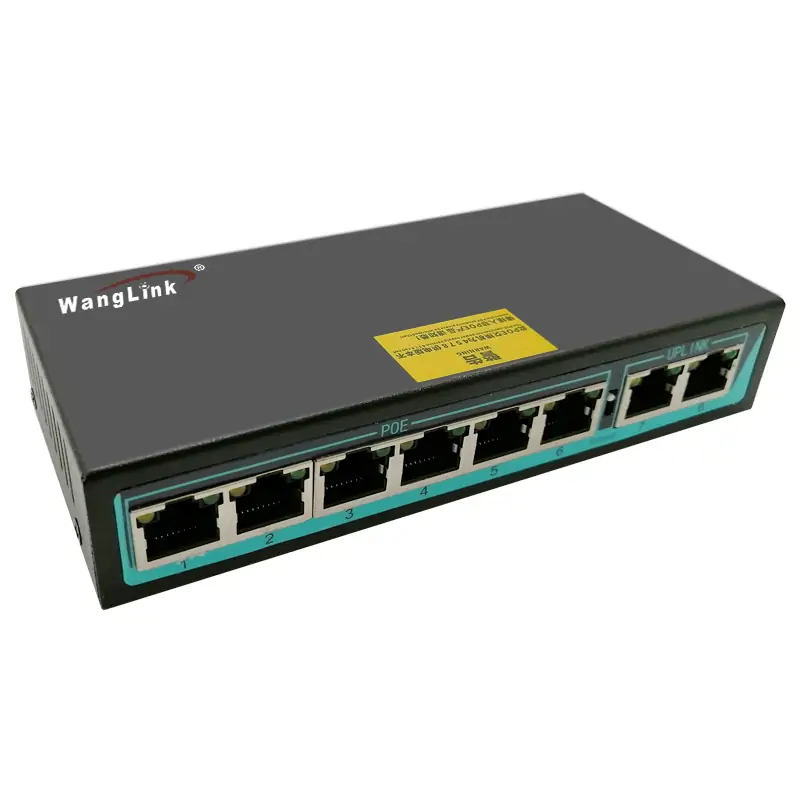

The poe switch 8port SF62NP is a high-performance Ethernet switch designed specifically for seamless connectivity and power delivery to IP-based devices. This 10/100M non-standard PoE protocol switch features 6 PoE (Power over Ethernet) 10/100Base-TX ports and 2 additional uplink ports. It is ideal for applications such as surveillance systems, enabling efficient data transmission alongside power supply in a single cable.

Key Features

  • 6 PoE Ports: The SF62NP provides 6 RJ45 ports that support PoE, allowing for simultaneous data transmission and power supply. Each port can deliver a maximum output current of 1A.
  • Uplink Functionality: With 2 dedicated 10/100Base-T uplink ports, this poe switch 8port facilitates efficient network connectivity and communication with other devices.
  • Extended Transmission Range: Utilizing the DIP switch, you can force ports 1-6 to operate at 10Mbps, extending transmission distances up to 250 meters over existing twisted pair cables.
  • Isolation Capability: Ports 1-6 operate in isolation from each other while being able to communicate with the uplink ports, reducing broadcast storms and improving overall network performance.
  • VLAN Mode Support: The switch supports one-key activation of VLAN mode, enhancing your network’s segmentation and security.
  • Automatic Configuration: All ports include auto-negotiation for 10/100Mbps rates and half/full duplex, simplifying setup and ensuring optimal performance.
  • Easy Installation: The poe switch 8port is designed for plug-and-play operation, with options for both desktop and wall-mounted installation.
  • Durable Metal Housing: Constructed with a metal shell, the switch offers excellent heat dissipation, ensuring stable operation over extended periods.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Interface informationDownlink Ethernet port: 6 10/100M Base-TX ports (non-standard poe protocol)
Uplink Ethernet port: 2 10/100M Base-TX ports (uplink port)
RJ45 network port: 6 10/100M Base-TX ethernet ports
10/100Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 150×65×28mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
Weight: <0.28KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:1.6Gbps
Packet forwarding rate (whole machine) : 1.1904 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 768kb
Jumbo frame: 2K

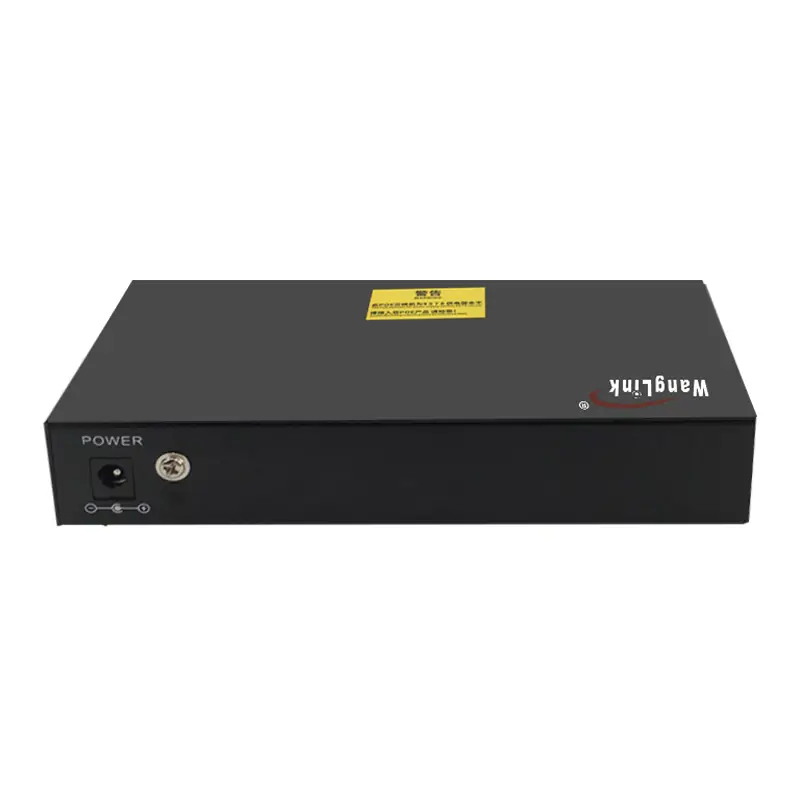

Power supplyInput voltage: DC 12V-24V
Power consumption: < 3W
PoENon-standard PoE (Pin: 4/5+, 7/8-)
IndicatorEthernet Port indicator(fluctuation switch control):10/100M Link/ACT/Yellow/Green(uplink port 7-8);PoE: Green; Yellow: port 1-6Standard mode: All port can communication with each otherExtend mode: Ports 1-6 can transmit up to 250m. Ports 1-6 are isolated from each other and can communicate with ports 7-8.
Power(Power system indicator light): Red

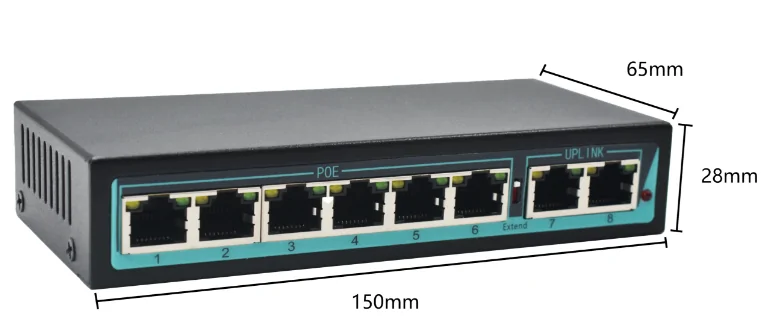

Product size

Product size: SF62NP | Unmanaged Nicht-standard-Protokoll poe-switch 8port 6 2 uplink poe

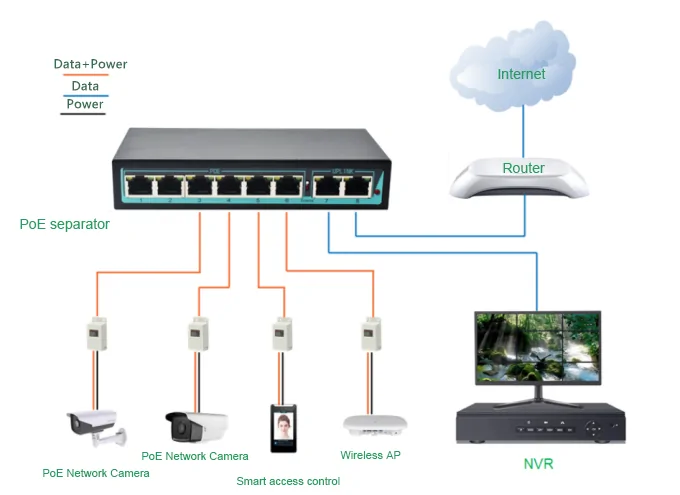

Application

Application: SF62NP | Unmanaged Nicht-standard-Protokoll poe-switch 8port 6 2 uplink poe
Product size: SF62NP | Unmanaged Nicht-standard-Protokoll poe-switch 8port 6 2 uplink poe
Application: SF62NP | Unmanaged Nicht-standard-Protokoll poe-switch 8port 6 2 uplink poe
