SL82NP | Unmanaged non-standard protocol poe switch 8-port with 2 uplink

Explore the PoE Switch 8-Port, SL82NP with 8 PoE ports, customizable voltage, and VLAN mode. Ideal for efficient monitoring networking and seamless communication.

Tags:

Email:

Sample order

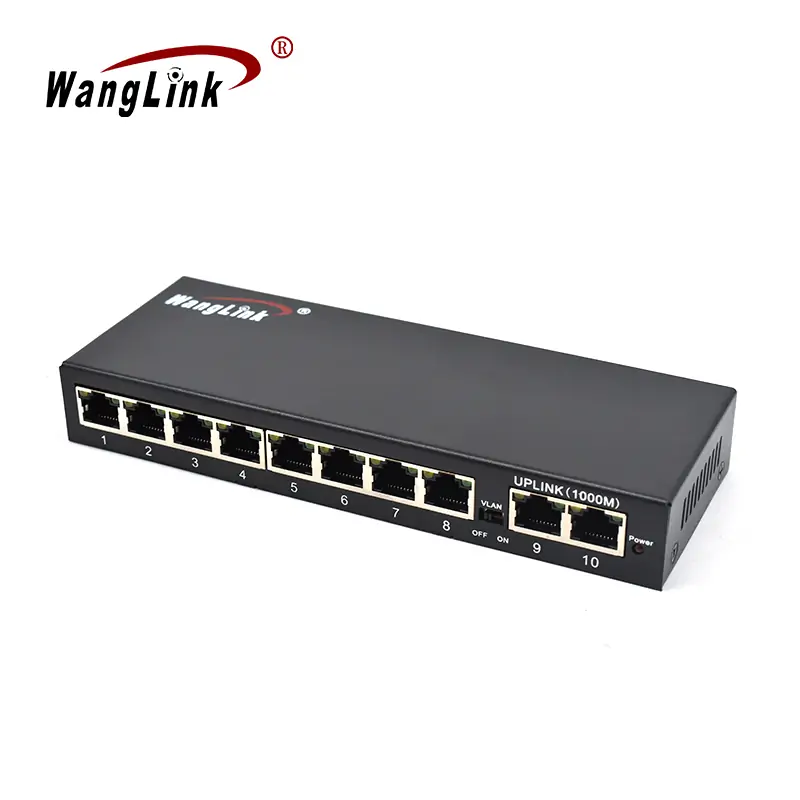

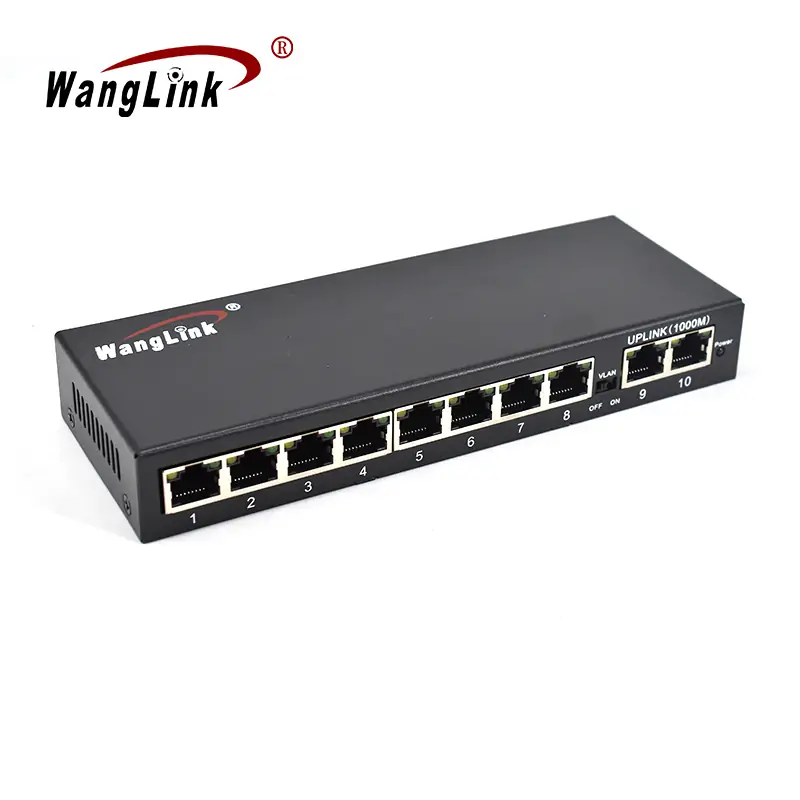

PoE Switch 8-Port, SL82NP Product Overview

The PoE Switch 8-Port, SL82NP is a high-performance Ethernet switch featuring a non-standard PoE protocol. This switch includes 8 10/100Base-TX Ethernet ports and 2 10/100Base-T uplink ports, allowing for simultaneous data transmission and power delivery to IP-based terminals. Each port supports adaptive bandwidth speed adjustment and features an automatic crossover/parallel twisted pair flip function (Auto MDI/MDI-X), providing a maximum bidirectional transmission rate of 200Mbps for ports 1-8.

PoE Switch 8-Port, SL82NP Key Features

  • 8 PoE Ports: Each of the 8 RJ45 ports supports PoE power supply with a maximum output current of 1A per port.
  • Power Supply Modes: The PoE ports utilize the 45+/78- power supply mode, compatible with various power devices.
  • Customizable Voltage: PoE power supply voltage can be tailored to meet demands, supporting outputs of 12V and 24V.
  • VLAN Mode: Easily switch to VLAN mode with a single click for enhanced network management.
  • Rate Adaptation: Supports 10/100/1000Mbps rate adaptation and half/full duplex operation for optimal performance.
  • Isolation Feature: Ports 1-8 can be forced to a 10Mbps rate via DIP switch, allowing for transmission distances up to 250m while isolating the ports from each other, thus reducing broadcast disturbances and improving network efficiency.
  • Seamless Communication: Ports 1-8 can communicate with uplink ports (9-10) to effectively isolate conflict and broadcast domains.
  • User-Friendly Design: Plug-and-play functionality ensures simple operation with no configuration required.
  • Durable Construction: Built with a metal shell and external power supply, this switch provides excellent heat dissipation for stable long-term operation.

PoE Switch 8-Port, SL82NP Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Interface informationEthernet port: 8 10/100M Base-TX ports (non-standard POE)
Uplink port: 2 10/100/1000M Base-T ports (uplink ports)
10/100Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): :185×67×28mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
Weight: <0.28KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 5.6Gbps
Packet forwarding rate (whole machine) : 4.1664Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 2k
 Power supplyInput voltage: DC 12V-24V
Power consumption: < 3 W
PoE pinNon-standard PoE protocol (4/5+,7/8-), Optional 12/24V output voltage
IndicatorPort indicator (control by Vlan fluctuation switch):Uplink: 10/100/1000M Link/ACT/yellow/green (port 9-10);Poe port: green/POE, yellow/100M (1-8 ports);Vlan OFFVlan ON

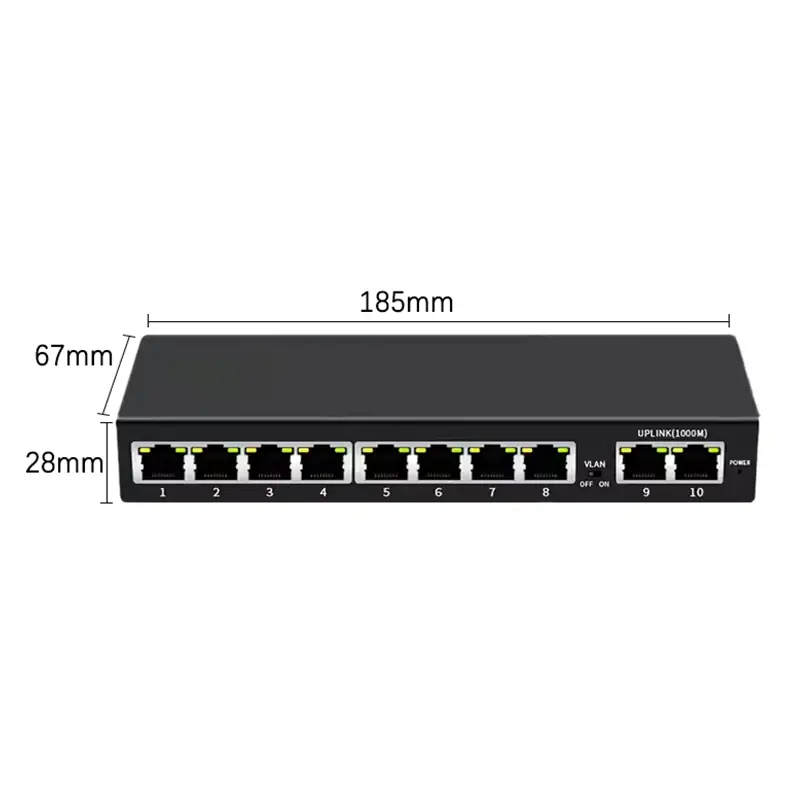

Product size

Product size: SL82NP | Unmanaged nicht-standard-Protokoll poe-switch mit 8 Ports mit 2 uplink

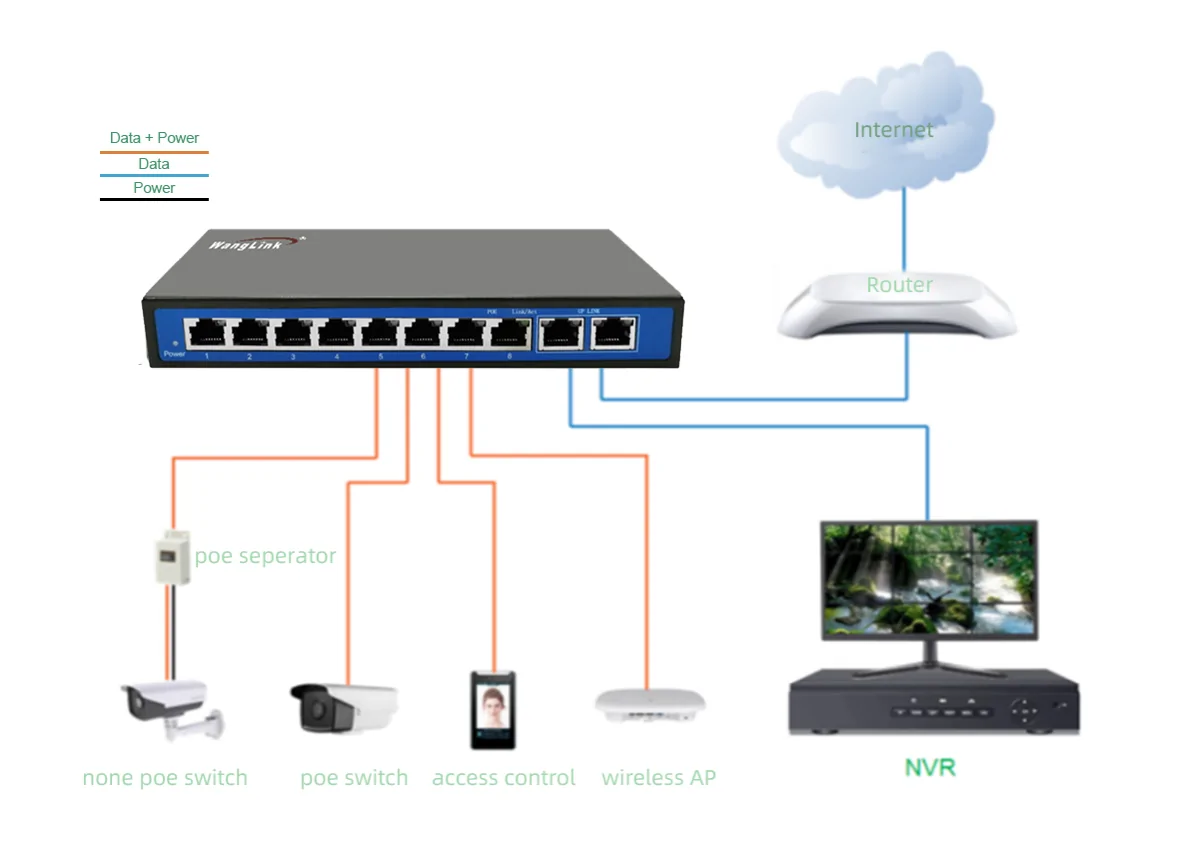

Application

Application: SL82NP | Unmanaged nicht-standard-Protokoll poe-switch mit 8 Ports mit 2 uplink
Product size: SL82NP | Unmanaged nicht-standard-Protokoll poe-switch mit 8 Ports mit 2 uplink
Application: SL82NP | Unmanaged nicht-standard-Protokoll poe-switch mit 8 Ports mit 2 uplink
