SL811P | Unmanaged PoE Switch 8 Port with 2 Gigabit Uplink RJ45 SFP

Discover the PoE Switch 8 Port, featuring 8 PoE ports with a total output of 96W, perfect for powering devices in hotels, shops, and SMEs. Enjoy easy installation, VLAN support, and long-distance transmission capabilities.

Email:

Sample order

Product Overview

The PoE Switch 8 Port is a reliable networking solution designed for efficient power and data transmission in various environments, including video surveillance, hotels, shops, supermarkets, and small to medium-sized enterprises. This switch features eight 10/100Base-TX Ethernet ports that support Power over Ethernet (PoE) capabilities, allowing you to power compatible devices without needing separate power sources. With an additional 10/100/1000Base-T uplink port and a 1000Base-X SFP slot, this switch provides flexible connectivity options for your network.

Key Features

  • 8 PoE Ports: Eight 10/100Base-TX PoE ports that support IEEE 802.3 af/at protocols, delivering a maximum power output of 25.4W per port.
  • High Total PoE Power: The switch can provide a total PoE power output of up to 96W, ensuring adequate power for multiple devices.
  • VLAN and Long-Distance Transmission: Easily switch to VLAN mode and enable 250m long-distance transmission through the DIP switch, allowing for extended network reach.
  • Auto-Negotiation: Ports 1-8 support 10/100Mbps auto-negotiation, while ports 9-10 support 10/100/1000Mbps auto-negotiation for optimal performance.
  • Network Isolation: Ports 1-8 are isolated from each other, reducing broadcast storms and enhancing network efficiency, while still allowing communication with uplink ports.
  • Adaptive Duplex: Supports half/full duplex adaptive and auto MDI/MDI-X functions for seamless integration into existing networks.
  • Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring high-speed data transfer.
  • Easy Installation: Designed for desktop or wall-mounted installation, the switch offers plug-and-play functionality with no configuration required.
  • Durable Design: Constructed with a metal case and an internal power supply, it provides excellent heat dissipation for stable long-term operation.

Product Parameters

ProtocolStandardIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LX standardsIEEE 802.3x flow control
Fiber Port CharacteristicConnector TypeSFP Slot
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type1×8 RJ45,1×1 RJ45
Transmission rate10/100Mbps auto-negotiate;10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space1Mb
Jumbo frames9216b
Packet Forwarding Rate4.1664Mpps@64byte
Bandwidth5.6G(non-blocking)
LED indicatorPower indicatorGreen, power
Fiber indicatorGreen, per SFP optical fiber port
Link/Act indicatorYellow, per ethernet port
PoE indicatorGreen, per PoE port
DIP switch100mStandard mode – All ports can communicate with each other.
250mExtend mode, port 1-8 is isolated from each other, transmission distance can up to 250m, and can communicate with port 9-10.
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤3W; whole: ≤96W
PoE pin1/2+,3/6-
The port max rate≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize201×140×44mm
WeightNet weight:0.7kg,Gross weight: 0.9kg

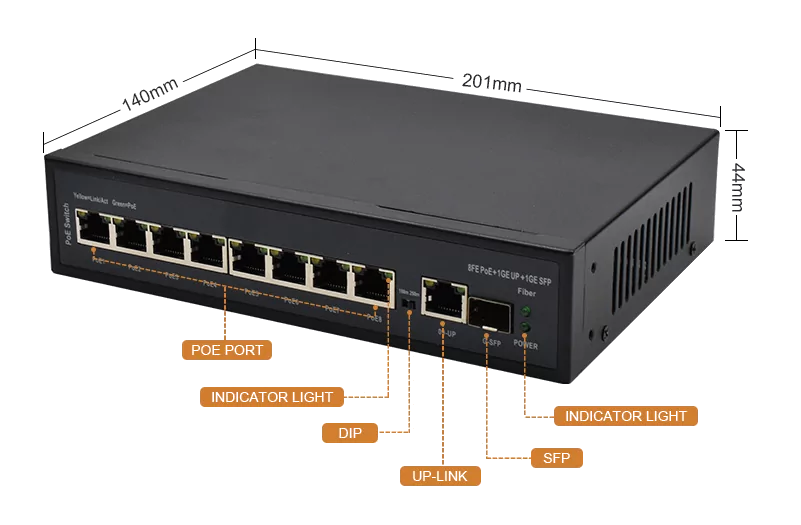

Product size

Product size: SL811P | Unmanaged PoE Schalter 8 Ports mit 2 Gigabit-Uplink RJ45 SFP

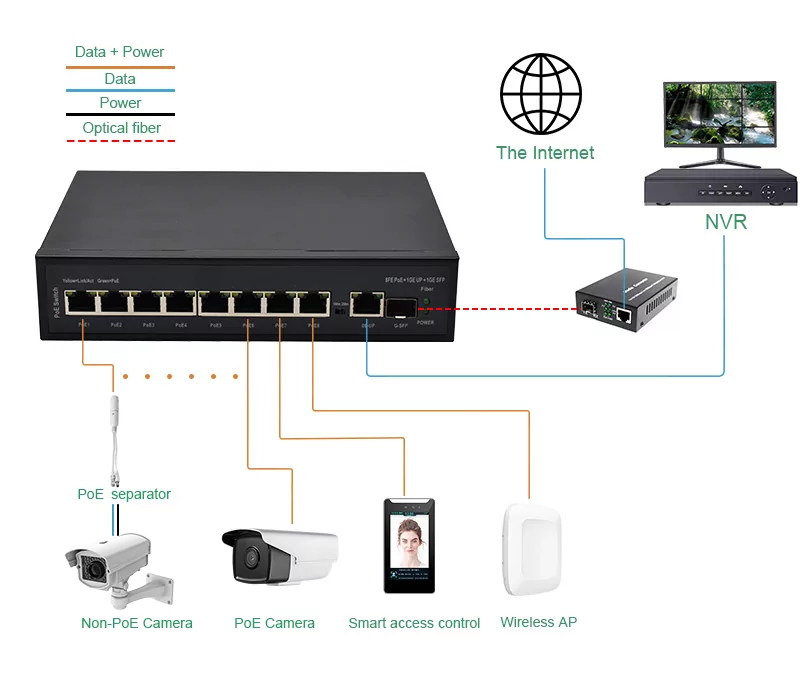

Application

Application: SL811P | Unmanaged PoE Schalter 8 Ports mit 2 Gigabit-Uplink RJ45 SFP
Product size: SL811P | Unmanaged PoE Schalter 8 Ports mit 2 Gigabit-Uplink RJ45 SFP
Application: SL811P | Unmanaged PoE Schalter 8 Ports mit 2 Gigabit-Uplink RJ45 SFP
