CG802P | Gigabit PoE 8 port media converter with 2 fiber port

The CG802P 8-Port Media Converter features 2 SC fiber ports and 8 10/100/1000Mbps Ethernet ports, providing 25.4W PoE for efficient networking solutions in diverse commercial applications.

Email:

Sample order

Product Overview

The CG802P 8-Port Media Converter is a powerful fiber optic transceiver designed to provide seamless connectivity between fiber optic and Ethernet networks. This device is equipped with 2 1.25Gbps SC fiber ports and 8 10/100/1000Mbps Ethernet ports. It supports IEEE 802.3 af/at Power over Ethernet (PoE) standards, delivering a maximum power output of 25.4W per Ethernet port. The built-in PoE detection feature ensures that power is only provided to compliant devices, preventing damage to non-PoE devices.

Key Features

  • Eight 10/100/1000Base-TX Ethernet ports and two 1000Base-X SC fiber optic ports for high-speed and flexible connectivity.
  • Compliant with IEEE 802.3 af/at PoE standards, enabling 25.4W power delivery through each RJ45 Ethernet port.
  • All Ethernet ports support 10/100/1000Mbps speed auto-negotiation for optimal network performance.
  • Supports half/full duplex auto-negotiation and automatic MDI/MDI-X crossover, simplifying installation and configuration.
  • Features wire-speed forwarding on all Ethernet ports for efficient data transmission and improved network performance.
  • Built with low-power consumption chips, ensuring stable performance and ease of maintenance.
  • Plug-and-play design allows for quick installation with no configuration required, making it ideal for immediate use.
  • Constructed with a durable metal housing for excellent heat dissipation, ensuring long-term stability and performance.

Ideal Applications

The CG802P 8-Port Media Converter is an excellent choice for video surveillance networking and is suitable for various commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at Power Over Ethernet
IEEE802.3x Flow control,
Interface informationSingle mode SC optical port: 2 1000Base-X optical ports(SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 ethernet port: 8 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps auto-negotiation
10Base-T: ≤100m (CAT5e or above)
100Base-TX: ≤100m (CAT5e or above)
1000Base-TX: ≤100m (CAT5e or above)
Mechanical PropertiesShell material: metal shell
Appearance size (length * depth * height): 241×105×39mm
Installation method: Desktop, Rack-mount
Cooling method: natural cooling, no fan
Weight: < 0.60Kg
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 20.0Gbps
Packet forwarding rate (entire device): 14.88 Mpps.
Switching method: Store-and-forward.
MAC address table: 4K
Packet buffer: 1.5m.
Jumbo frame: 9K.
Power supplyInput voltage: DC 48V-53V
Power consumption: < 3 W
PoE pin802.3AF/AT(1/2+,3/6-)
IndicatorsEthernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green(10/100/1000M)
Optical Port LED:FX Indicator: Green
Power LED (PWR): Green

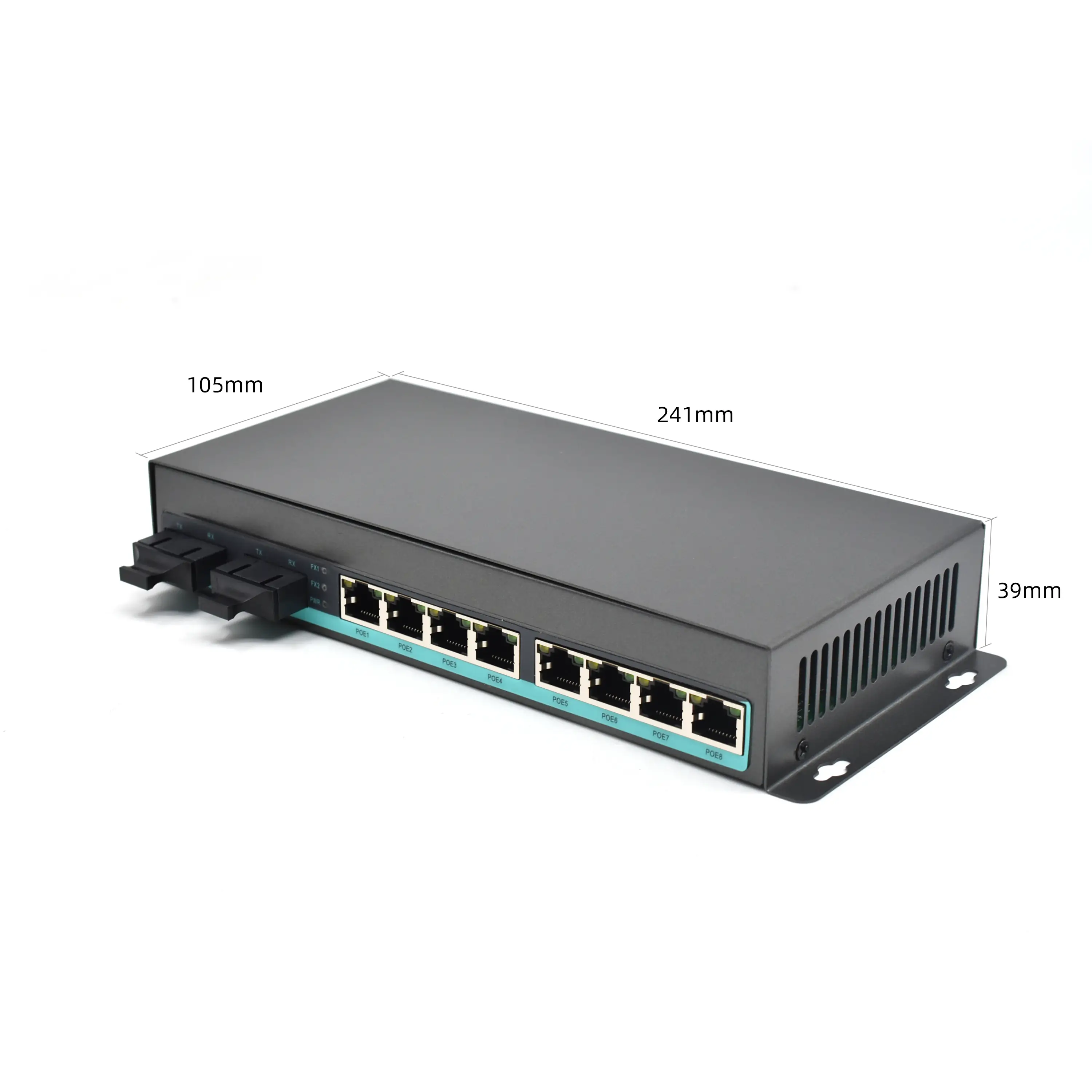

Product size

Product size: CG802P | Gigabit PoE 8 port media Konverter mit 2 LWL-port

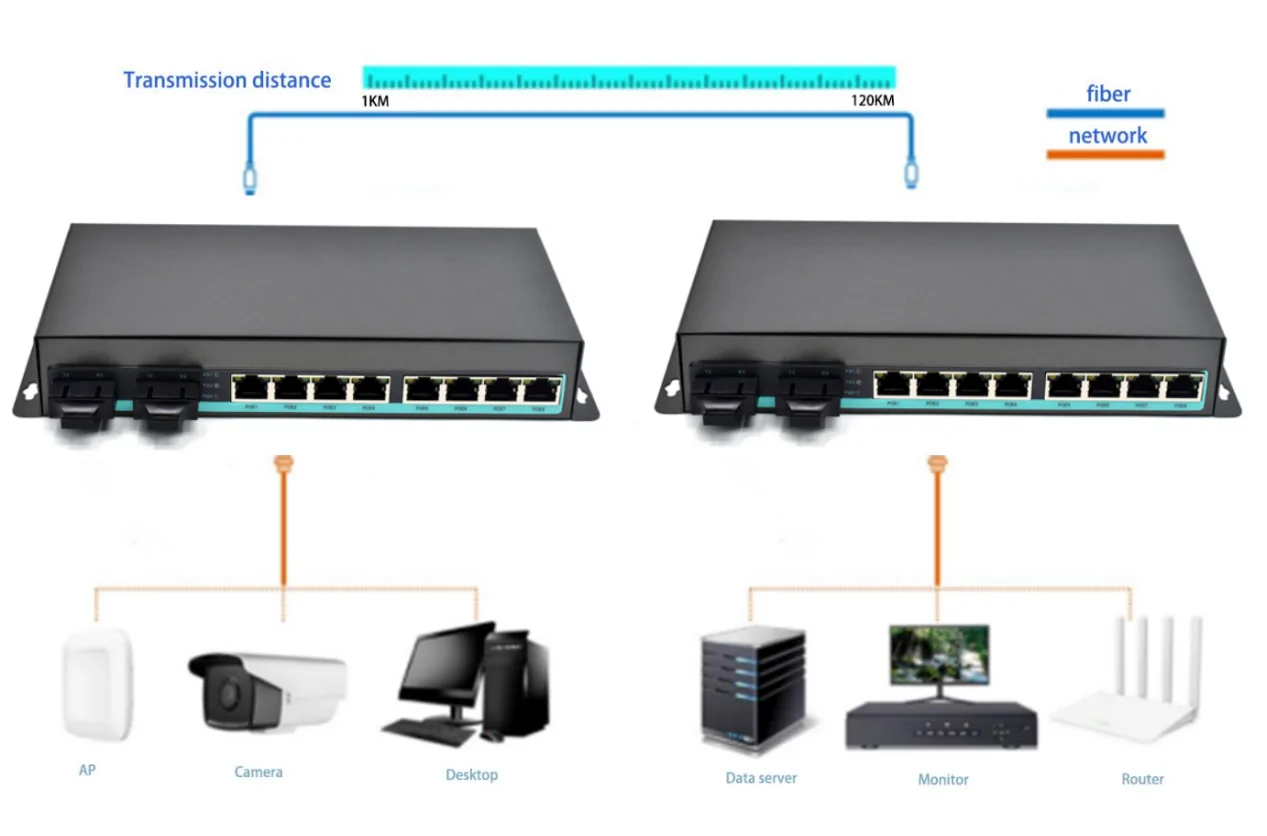

Application

Application: CG802P | Gigabit PoE 8 port media Konverter mit 2 LWL-port
Product size: CG802P | Gigabit PoE 8 port media Konverter mit 2 LWL-port
Application: CG802P | Gigabit PoE 8 port media Konverter mit 2 LWL-port
