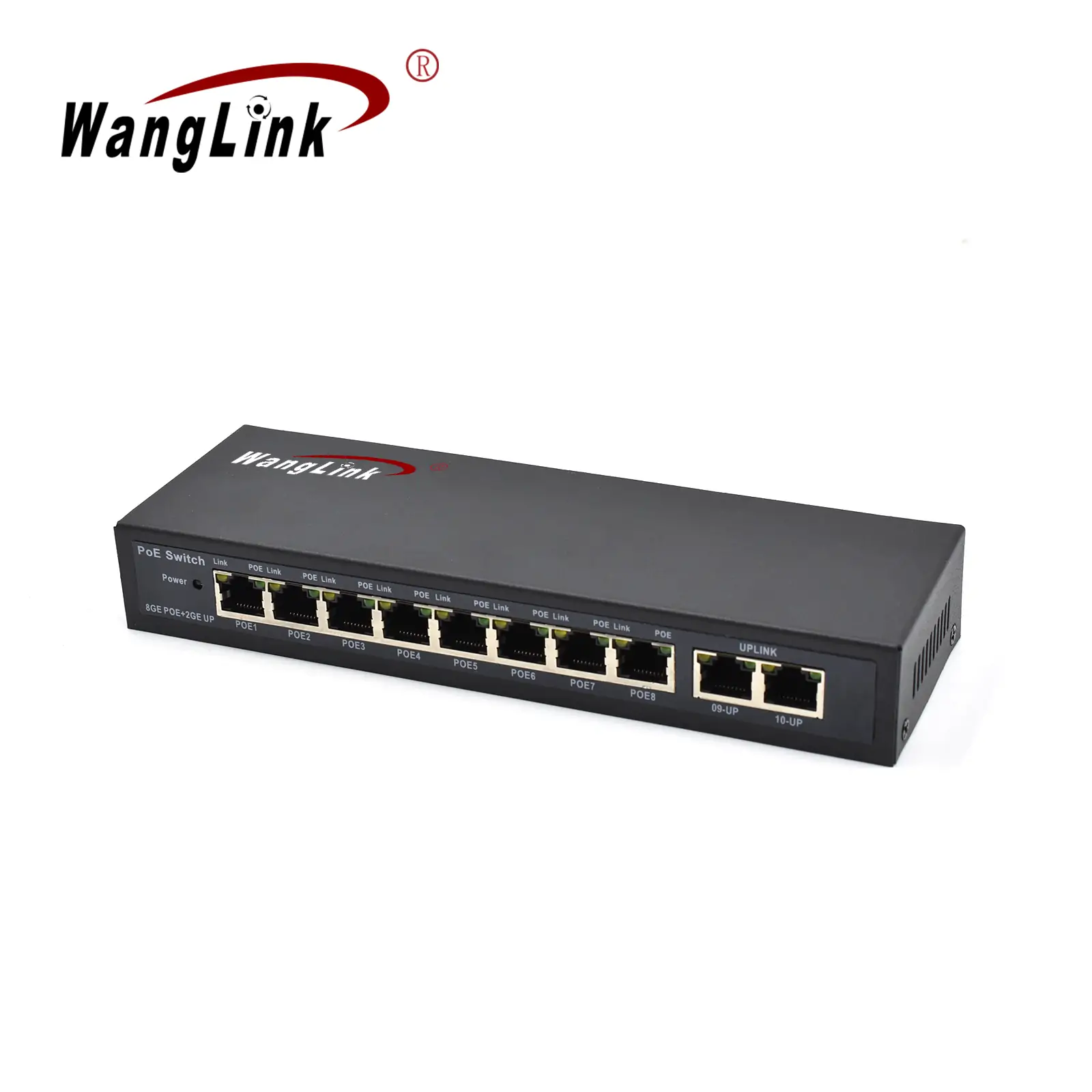

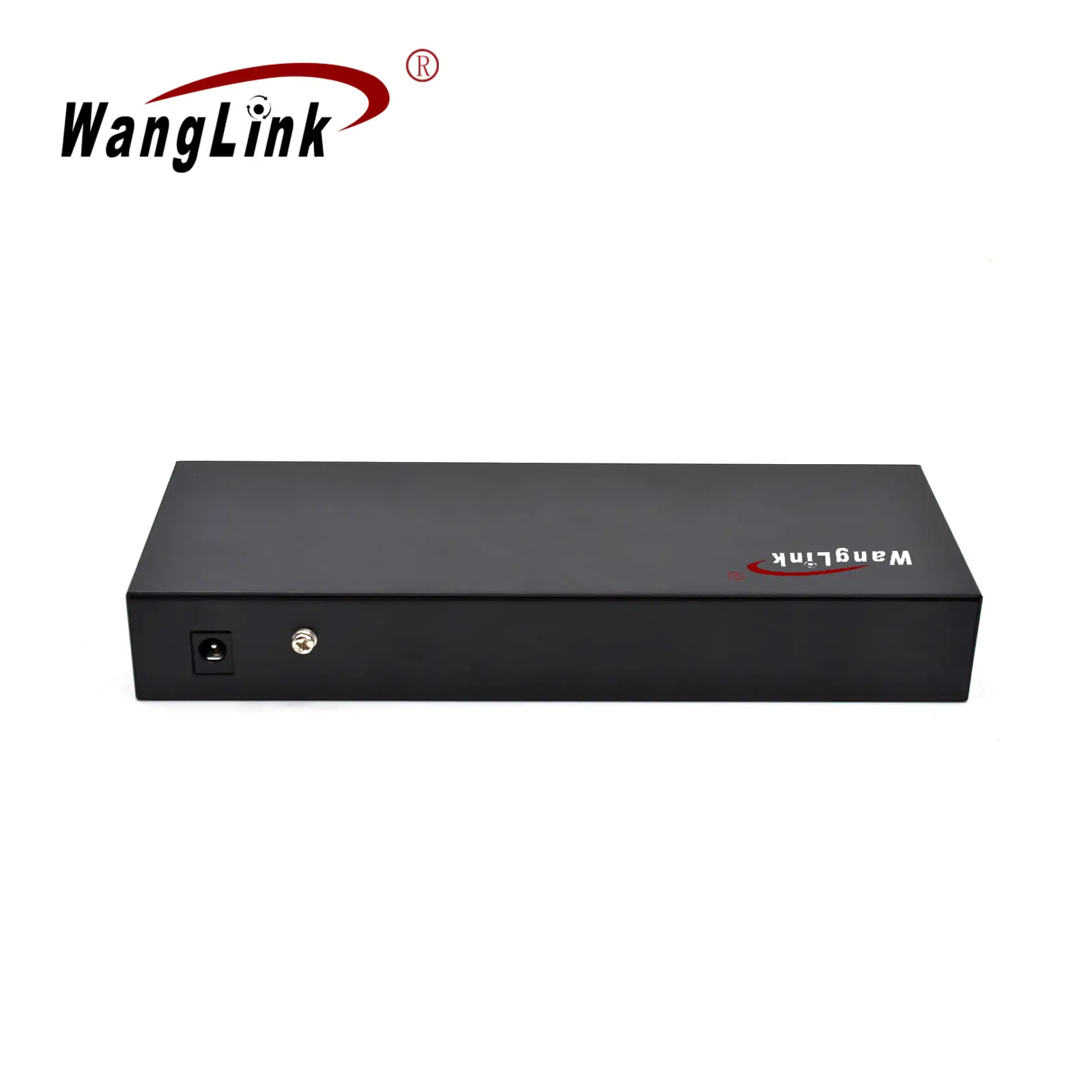

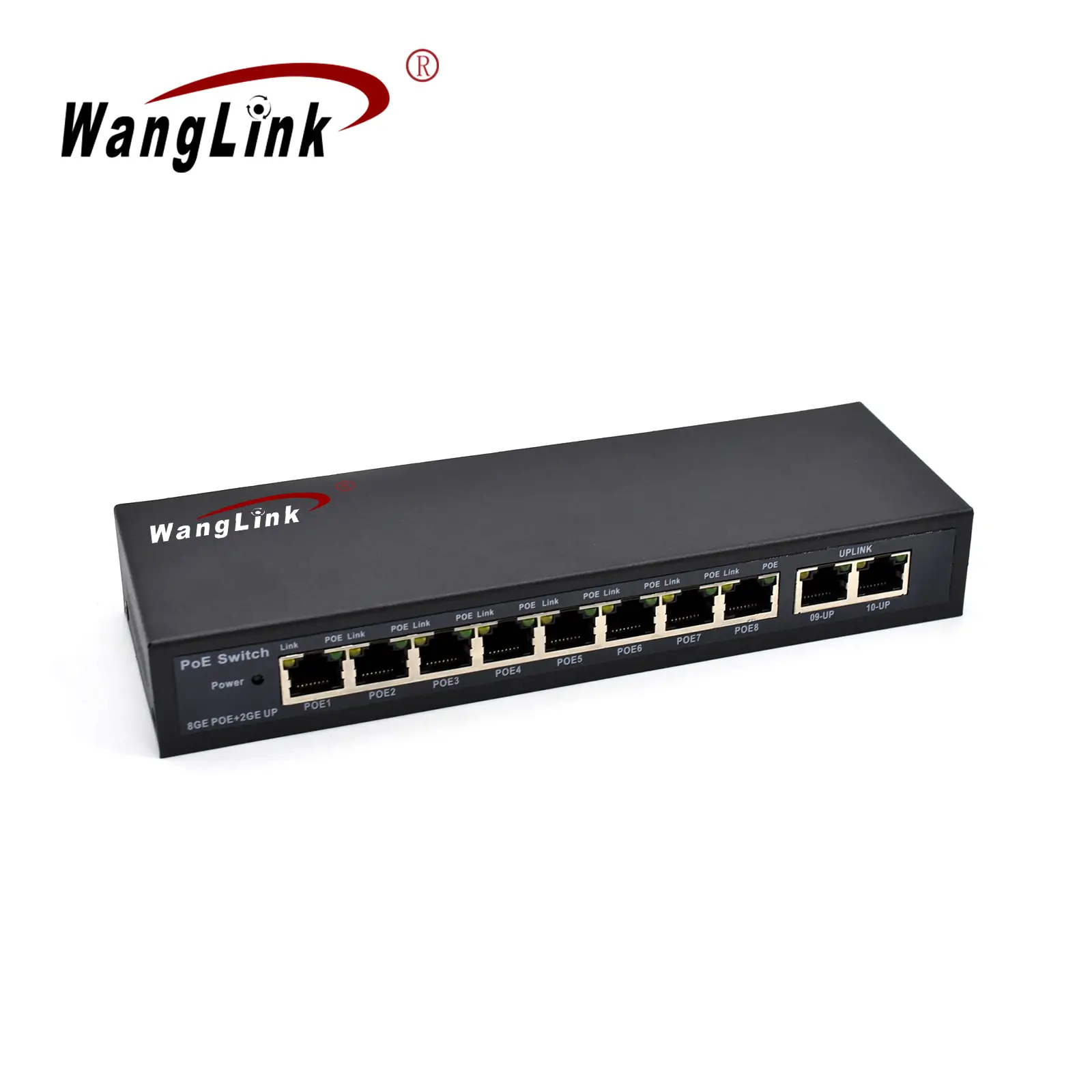

SG82P-E | Unmanaged 8-port gigabit ethernet poe switch 2 Uplink

The SG82P-E 8-Port Gigabit Ethernet PoE Switch features 8 PoE ports with 25.4W output each, ensuring reliable power and connectivity for devices. Ideal for commercial and surveillance applications with easy installation.

Email:

Sample order

Product Overview

The SG82P-E 8-Port Gigabit Ethernet PoE Switch is a powerful networking solution designed for seamless connectivity and efficient power delivery. Featuring 10 10/100/1000Base-T Ethernet ports, this switch supports the IEEE802.3 af/at standard, with 8 ports capable of providing Power over Ethernet (PoE). Each PoE port delivers a maximum output of 25.4W, ensuring that powered devices receive the necessary energy while automatically detecting PoE compatibility to prevent damage to non-PoE devices.

Key Features

  • 8 10/100/1000Base-T PoE Ethernet ports and 2 10/100/1000Base-T uplink ports for versatile networking options.
  • All 8 RJ45 ports support the IEEE802.3 af/at PoE protocol, providing a maximum output power of 25.4W per port.
  • Each port supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality for flexible connectivity.
  • Supports line-speed forwarding on all ports, ensuring smoother data transmission for enhanced performance.
  • Designed for desktop and wall-mounted installation, offering flexibility in deployment.
  • Plug and play operation allows for simple setup without the need for any configuration.
  • Constructed with a durable metal shell and external power supply design, ensuring excellent heat dissipation for stable long-term operation.
  • Optional features include 6KV common mode/4KV differential mode surge protection to safeguard devices and an AI network self-healing (watchdog) function for improved network reliability.

Ideal Applications

The SG82P-E 8-Port Gigabit Ethernet PoE Switch is perfectly suited for a variety of environments, including video surveillance, making it ideal for deployment in hotels, retail shops, supermarkets, family homes, and small to medium-sized enterprises.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at Power Over Ethernet
IEEE 802.3x flow control
Interface informationRJ45  port: 8 10/100/1000M Base-T ports (POE, POE+)
RJ45 port: 2 10/100/1000M Base-T ports (Internet access port)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 209×67×31mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
Weight: 0.36KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:20Gbps
Packet forwarding rate (whole machine) : 14.88Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 9216b
Power supplyInput voltage: DC44V-57V
Power consumption: < 3 W
PoEPin: 1/2+, 3/6-; Maximum output: 25.4W
indicator lightPort light (fluctuation switch control):Link/Act: Yellow (10/100/1000M)PoE indicator light: green for poe port
POWER(Power system indicator light): Green

Product size

Product size: SG82P-E | Unmanaged 8-port gigabit ethernet poe switch 2 Uplink

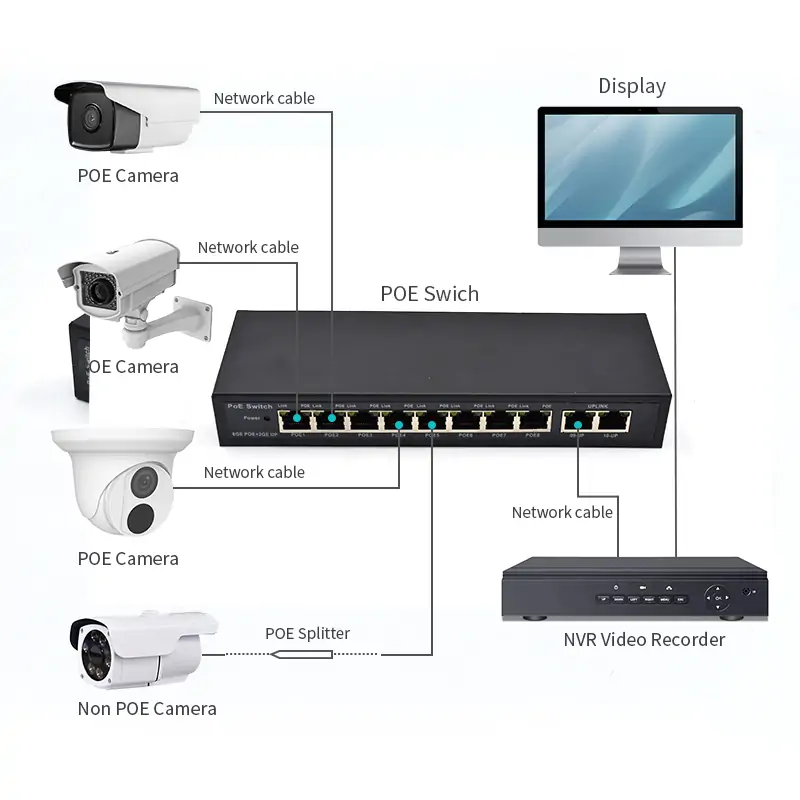

Application

Application: SG82P-E | Unmanaged 8-port gigabit ethernet poe switch 2 Uplink
Product size: SG82P-E | Unmanaged 8-port gigabit ethernet poe switch 2 Uplink
Application: SG82P-E | Unmanaged 8-port gigabit ethernet poe switch 2 Uplink
