Unmanaged Ethernet Switch: Complete Guide to Plug-and-Play Network Solutions
In today’s interconnected world, network infrastructure forms the backbone of every successful business operation. Among the various networking components available, the unmanaged ethernet switch stands out as a fundamental building block for creating reliable, efficient networks. Whether you’re setting up a small office network or expanding an existing infrastructure, understanding the capabilities and applications of unmanaged switches is crucial for making informed networking decisions.
What is an Unmanaged Ethernet Switch?

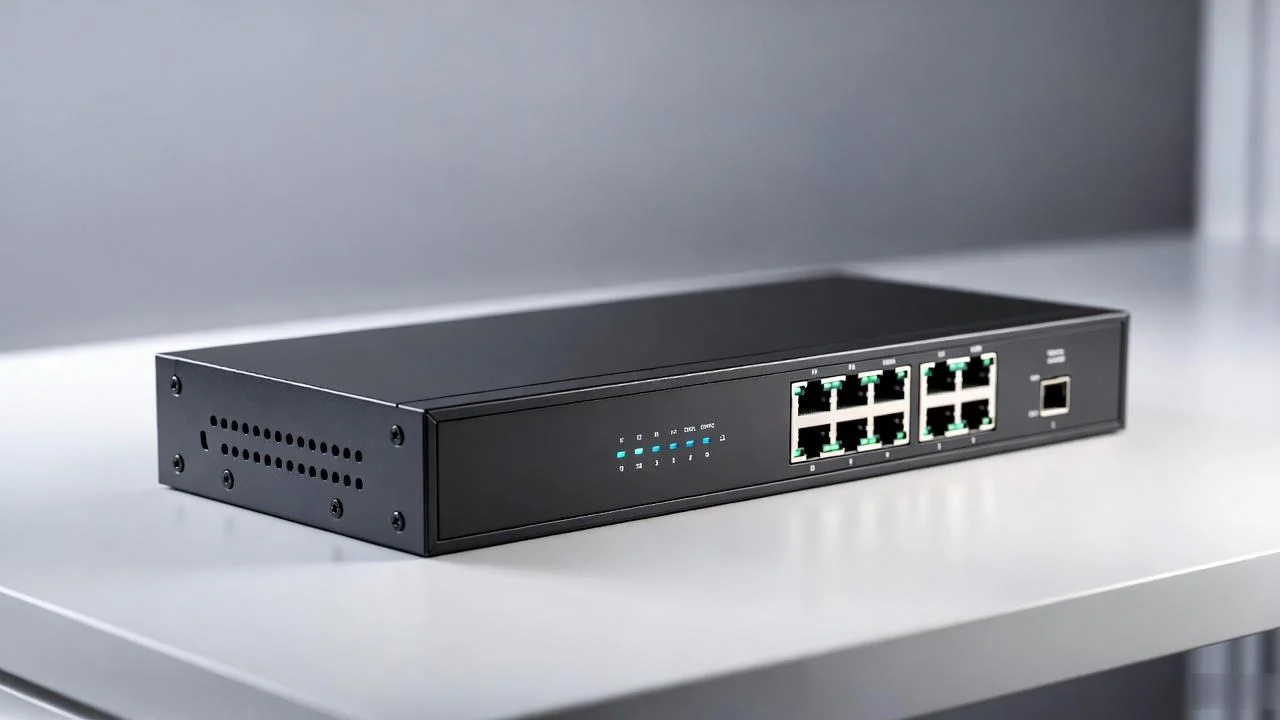

An unmanaged ethernet switch is a plug-and-play networking device that connects multiple devices within a local area network (LAN) without requiring any configuration or management. Unlike managed switches, these devices operate automatically, making them ideal for users who need reliable network connectivity without the complexity of advanced network management features.
Key Characteristics of Unmanaged Switches
Unmanaged switches offer several distinctive features that make them attractive for various networking scenarios:
- Zero Configuration: Simply connect devices and power on
- Automatic MAC Address Learning: Builds forwarding tables automatically
- Full-Duplex Communication: Simultaneous send and receive capabilities
- Store-and-Forward Switching: Ensures data integrity
- LED Status Indicators: Visual confirmation of port activity and link status
Types of Unmanaged Ethernet Switches
The market offers various types of unmanaged switches to meet different networking requirements:
1. Desktop Unmanaged Switches
Desktop models are compact devices designed for small office or home office (SOHO) environments. Popular configurations include:
- 5-Port Switches: Perfect for connecting a few devices
- 8-Port Switches: Ideal for small workgroups
- 16-Port Switches: Suitable for medium-sized offices
2. Rack-Mount Unmanaged Switches
For larger installations, rack-mount options provide higher port density and professional installation capabilities:
- 24-Port Gigabit Switches: High-density connectivity for enterprise environments
- 16-Port Gigabit with SFP: Fiber uplink capabilities for extended reach
3. Industrial Unmanaged Switches
Designed for harsh environments, industrial switches offer:
- Extended temperature ranges (-40°C to +75°C)
- Ruggedized enclosures
- DIN rail mounting options
- Enhanced electromagnetic compatibility (EMC)
Technical Specifications and Performance
Understanding the technical aspects of unmanaged switches helps in making informed purchasing decisions:
| Specification | Entry-Level | Mid-Range | Enterprise |
|---|---|---|---|
| Port Count | 5-8 ports | 16-24 ports | 24-48 ports |
| Data Rate | 10/100 Mbps | 10/100/1000 Mbps | Gigabit + 10G uplinks |
| Switching Capacity | 1-2 Gbps | 32-48 Gbps | 96-176 Gbps |
| MAC Address Table | 1K-2K entries | 8K entries | 16K+ entries |
| Buffer Memory | 128KB-256KB | 512KB-1MB | 2MB+ |
| Power Consumption | 3-8W | 15-25W | 35-65W |
| MTBF | 200,000+ hours | 300,000+ hours | 500,000+ hours |
Performance Considerations
When evaluating unmanaged switch performance, consider these critical factors:
- Switching Fabric: Non-blocking architecture ensures full wire-speed performance
- Forwarding Rate: Measured in packets per second (pps)
- Latency: Store-and-forward switches typically have 5-10 microseconds latency
- Throughput: Full-duplex operation doubles effective bandwidth
Applications and Use Cases
Unmanaged ethernet switches serve various networking scenarios across different industries:
Small Business Networks
Small businesses benefit from unmanaged switches in several ways:
- Cost-Effective Expansion: Add network ports without expensive infrastructure
- Simplified Management: No IT expertise required for deployment
- Reliable Connectivity: Proven technology with minimal failure points
Home Office Setups
Remote workers and home offices utilize unmanaged switches for:
- Connecting multiple devices to a single internet connection
- Creating dedicated network segments for work equipment
- Extending network reach to different rooms
Educational Institutions
Schools and universities deploy unmanaged switches for:
- Computer Labs: Connecting multiple workstations
- Classroom Networks: Supporting interactive whiteboards and tablets
- Administrative Areas: Linking printers, scanners, and office equipment
Retail Environments
Retail businesses use unmanaged switches to connect:
- Point-of-sale (POS) systems
- Inventory management devices
- Security cameras and access control systems
- Customer Wi-Fi access points
Case Study: Manufacturing Facility Network Upgrade
Background: A mid-sized manufacturing company needed to upgrade their aging network infrastructure to support new automated production equipment and improve data collection capabilities.
Challenge: The existing network consisted of outdated 10/100 Mbps switches that couldn’t handle the increased data traffic from new IoT sensors and production monitoring systems.
Solution: The company implemented a tiered approach using Wanglink unmanaged switches:
- Tier 1: 24-port rack-mount gigabit switches in the main distribution frame
- Tier 2: 16-port desktop switches for departmental connections
- Tier 3: Industrial 5-port switches on the production floor
Results:
- 300% improvement in network throughput
- 99.9% uptime achieved over 12 months
- 40% reduction in network-related downtime
- Seamless integration with existing infrastructure
Advantages of Unmanaged Switches
1. Simplicity and Ease of Use
The primary advantage of unmanaged switches lies in their simplicity:
- Plug-and-Play Operation: No configuration required
- Automatic Learning: Builds MAC address tables automatically
- Self-Healing: Automatically adapts to network changes
- Universal Compatibility: Works with any Ethernet-enabled device
2. Cost-Effectiveness
Unmanaged switches offer excellent value proposition:
- Lower Initial Cost: Significantly cheaper than managed alternatives
- Reduced Operational Expenses: No need for specialized IT staff
- Energy Efficiency: Lower power consumption reduces operating costs
- Minimal Maintenance: Fewer components mean fewer failure points
3. Reliability and Performance
Despite their simplicity, unmanaged switches deliver robust performance:
- High Availability: Typical MTBF exceeds 200,000 hours
- Wire-Speed Performance: Full bandwidth utilization
- Low Latency: Minimal delay in data forwarding
- Stable Operation: Fewer software components reduce crash risks
Limitations and Considerations
While unmanaged switches offer many benefits, they also have limitations:
Security Considerations
- No Access Control: Cannot restrict device access
- Broadcast Domain: All ports share the same collision domain
- No VLAN Support: Cannot segment traffic logically
- Limited Monitoring: No visibility into network traffic patterns
Scalability Limitations
- Fixed Configuration: Cannot adapt to changing network requirements
- No QoS: Cannot prioritize critical traffic
- Limited Troubleshooting: Minimal diagnostic capabilities
- No Remote Management: Physical access required for maintenance
Selection Criteria for Unmanaged Switches
When choosing an unmanaged ethernet switch, consider these factors:
1. Port Requirements
Determine your current and future port needs:
- Count existing devices requiring network connectivity
- Plan for 20-30% growth over 3-5 years
- Consider device types (computers, printers, IP phones, cameras)
- Evaluate uplink requirements for connecting to other switches
2. Performance Specifications
Match switch capabilities to your network requirements:
- Bandwidth: Ensure adequate throughput for your applications
- Switching Capacity: Verify non-blocking performance
- Buffer Size: Important for handling traffic bursts
- Forwarding Rate: Critical for high-packet-rate applications
3. Physical Considerations
Evaluate installation requirements:
- Form Factor: Desktop vs. rack-mount vs. wall-mount
- Power Requirements: AC adapter vs. PoE vs. DC input
- Environmental Conditions: Temperature, humidity, vibration
- Mounting Options: Desk, wall, rack, or DIN rail
4. Future-Proofing Features
Consider long-term network evolution:
- Gigabit Capability: Essential for modern networks
- SFP Ports: Enable fiber connectivity for longer distances
- Energy Efficiency: Look for Energy Star or similar certifications
- Warranty and Support: Ensure adequate manufacturer backing
Wanglink Unmanaged Switch Solutions
As a leading ethernet switch manufacturer with over 13 years of experience, Wanglink offers comprehensive unmanaged switch solutions:
Product Portfolio
Our extensive range includes:
- Desktop Series: 5-port to 24-port configurations
- Rack-Mount Series: High-density solutions for enterprise deployments
- Industrial Series: Ruggedized switches for harsh environments
- PoE Variants: Unmanaged PoE switches for powering connected devices
Customization Services
Wanglink provides comprehensive customization services:
- Hardware Customization: Port configurations, connector types, enclosure design
- Firmware Adaptation: Custom boot sequences and LED behaviors
- Branding Options: Logo placement, color schemes, packaging design
- Compliance Certification: Regional regulatory requirements
Quality Assurance
Our commitment to quality includes:
- ISO 9001:2015 certified manufacturing processes
- 100% Factory Testing of all products before shipment
- Extended Warranty options up to 5 years
- 24/7 Technical Support for all customers
Installation and Best Practices
Installation Guidelines
Follow these best practices for optimal performance:
- Environmental Considerations:
- Maintain ambient temperature between 0°C to 40°C
- Ensure adequate ventilation around the switch
- Protect from moisture and dust
- Avoid direct sunlight and heat sources
- Power Requirements:
- Use only manufacturer-supplied power adapters
- Verify voltage compatibility (110V/220V)
- Consider UPS backup for critical applications
- Check power consumption against available capacity
- Cable Management:
- Use appropriate cable categories (Cat5e, Cat6, Cat6a)
- Maintain proper bend radius for cables
- Organize cables to prevent interference
- Label connections for easy identification
Network Design Considerations
Optimize your network design with these principles:

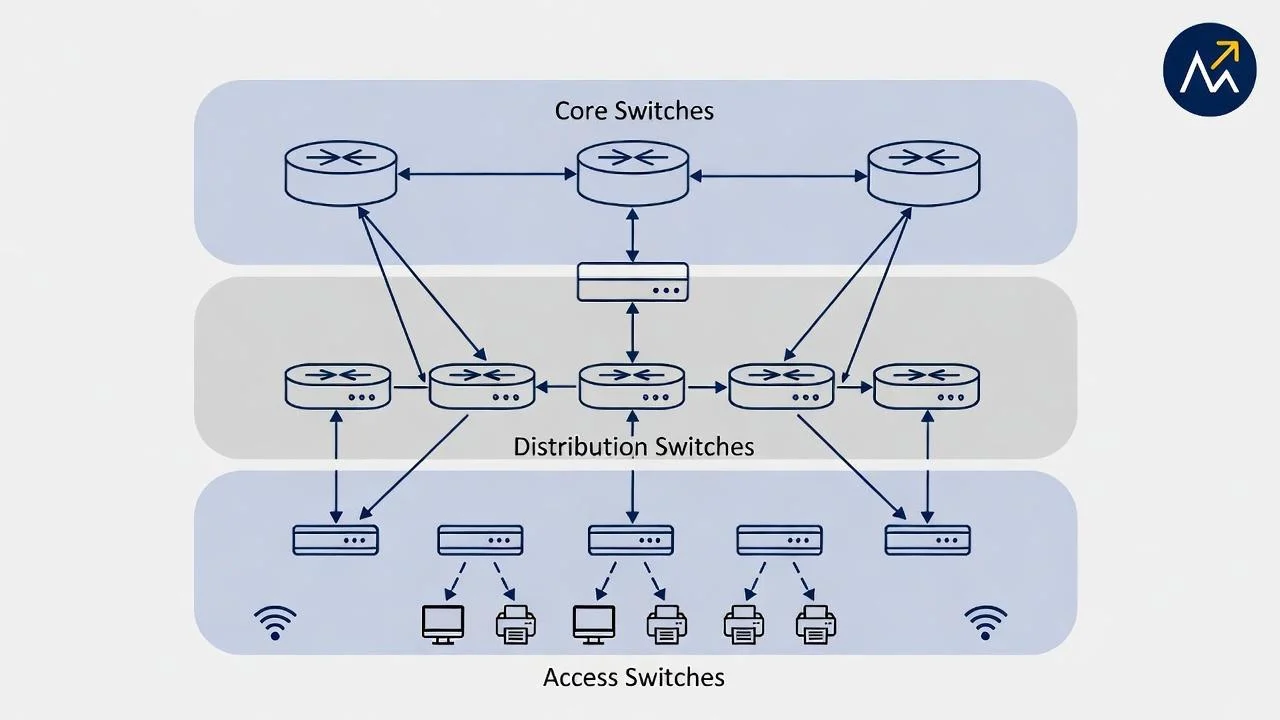

- Hierarchical Design: Use core, distribution, and access layers
- Redundancy Planning: Consider backup paths for critical connections
- Bandwidth Planning: Ensure adequate capacity for peak usage
- Future Expansion: Leave room for growth in your design
Troubleshooting Common Issues
LED Indicator Interpretation
Understanding LED patterns helps diagnose issues:
| LED Status | Meaning | Action Required |
|---|---|---|
| Solid Green | Link established, no activity | Normal operation |
| Blinking Green | Link established, data activity | Normal operation |
| Solid Orange | Link established at lower speed | Check cable quality |
| Blinking Orange | Collision detected | Check for duplex mismatch |
| Off | No link detected | Check cable and device |
Common Problems and Solutions
- No Link Detected:
- Verify cable connections
- Test with known good cable
- Check device network settings
- Confirm power to both devices
- Slow Performance:
- Check for duplex mismatches
- Verify cable category ratings
- Monitor for excessive collisions
- Consider network congestion
- Intermittent Connectivity:
- Inspect cable for damage
- Check connector integrity
- Verify power supply stability
- Monitor environmental conditions
Frequently Asked Questions (FAQ)
Q1: What’s the difference between managed and unmanaged ethernet switches?
A: The primary difference lies in configuration and control capabilities. Unmanaged switches operate automatically without any configuration, while managed switches offer advanced features like VLANs, QoS, and remote management. For a detailed comparison, check our guide on managed vs unmanaged ethernet switches.
Q2: Can I connect multiple unmanaged switches together?
A: Yes, you can daisy-chain unmanaged switches by connecting them through their Ethernet ports. However, be aware of potential performance implications and consider the spanning tree protocol limitations in complex topologies.
Q3: Do unmanaged switches support PoE (Power over Ethernet)?
A: Some unmanaged switches include PoE capability, allowing them to power connected devices like IP cameras, wireless access points, and VoIP phones. Wanglink offers various unmanaged PoE switch models for different applications.
Q4: How many devices can I connect to an unmanaged switch?
A: The number of devices depends on the switch’s port count. Each port can connect one device directly, though you can expand connectivity by connecting additional switches or using wireless access points.
Q5: What cable types work with unmanaged ethernet switches?
A: Most modern unmanaged switches support Cat5e, Cat6, and Cat6a cables. For gigabit speeds, Cat5e is the minimum requirement, while Cat6 or Cat6a provides better performance and future-proofing.
Q6: How do I know if my unmanaged switch is working properly?
A: Check the LED indicators on each port. Green lights typically indicate proper connectivity and link establishment. Blinking lights show data activity, which is normal during network communication.
Q7: Can unmanaged switches handle different speed devices?
A: Yes, most modern unmanaged switches feature auto-negotiation, automatically adjusting to the highest common speed supported by both the switch port and connected device (10/100/1000 Mbps).
Q8: Do I need special software to use an unmanaged switch?
A: No, unmanaged switches are truly plug-and-play devices. Simply connect your devices and power on the switch – no software installation or configuration is required.
Conclusion
Unmanaged ethernet switches represent an essential component in modern network infrastructure, offering simplicity, reliability, and cost-effectiveness for a wide range of applications. From small office networks to large enterprise deployments, these plug-and-play devices provide the foundation for reliable connectivity without the complexity of advanced management features.
When selecting an unmanaged switch, consider your current requirements, future growth plans, and environmental conditions. Wanglink’s comprehensive portfolio of unmanaged switches, backed by 13 years of manufacturing expertise and commitment to quality, provides solutions for every networking need.
Whether you’re expanding an existing network or building from scratch, unmanaged ethernet switches offer the perfect balance of performance, simplicity, and value. Contact our team at [email protected] or WhatsApp +8613544167258 to discuss your specific requirements and discover how our unmanaged switch solutions can enhance your network infrastructure.
For more information about our products and services, visit our products page or explore our customization capabilities to create tailored solutions for your unique networking challenges.
